AS8300A-13085 Fully Automatic Oil-Free Process Template Sewing Machine
This Fully Automatic Oil-Free Process Template Sewing Machine AS8300A-13085 is a state of the art innovative sewing machine. Oilless, which makes it impossible to stain fabric surfaces, so it is especially important for delicate and costly materials. The automatic feature makes the sewing process easier, thus maximizing productivity and decreasing manual labor.
- Overview
- Related Products

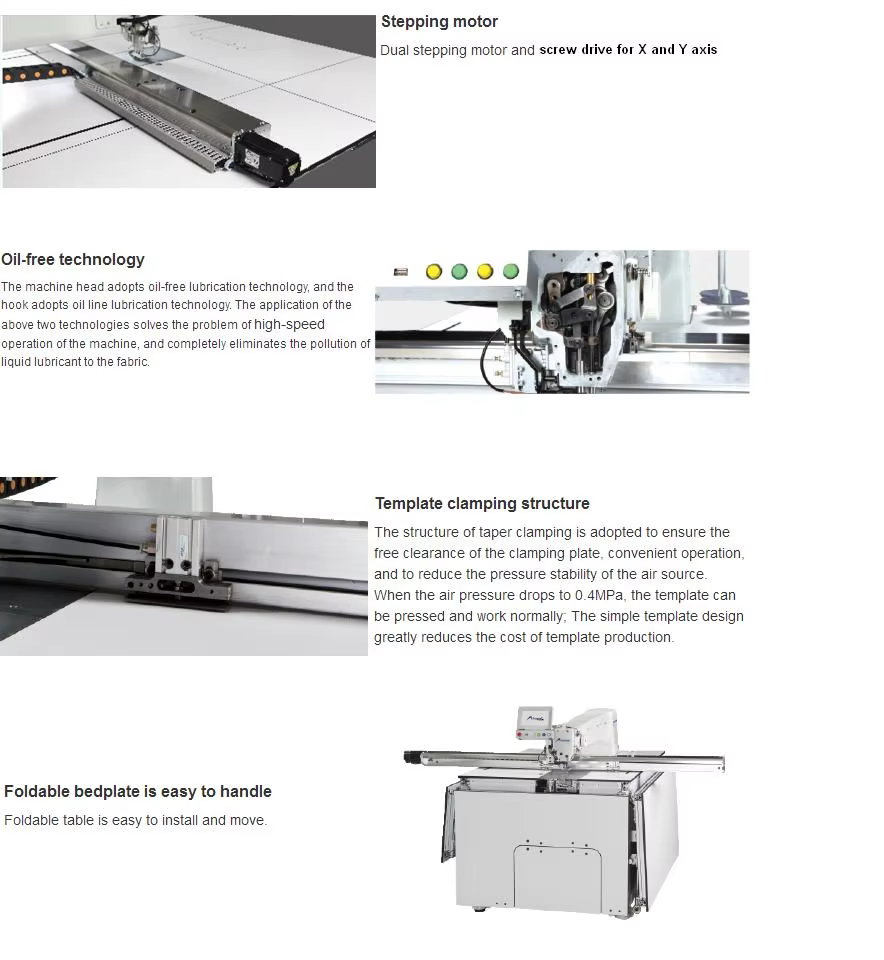

Detail Image
Specifications
.Widening synchronous belt up to 5cm;
.Stepping motor mechanism;
.Large machine base frame design;
.Oil-free on needle and head components;
.Micro oil on the rotary hook;
.Front mounted thread cutting cam brings a convenient maintenance;
.new template clamping device;
.Foldable table is easy to install and move;
| Model | AS8300A-13085 |
| Sewing range | X: 130cm Y: 85cm |
| Stitch type | 301 lockstitch form |
| Max. speed | 2800 rpm (when stitch length at 3mm and with regular thread) |
| Max. stitch length | 0.5-12.7 mm |
| Lift of the pressor foot | By hand: 5.5 mm; by knee: 13 mm |
| Needle type | DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#) |
| Hook | Double capacity hook |
| Middle presser foot | Stroke of 4mm as standard |
| Lowest position adjustable range: 0.5-8mm | |
| Minimum distance adjustment range: 20mm | |
| Outside presser foot | Distance to the big needle plate: 20mm |
| Max. stitches in a pattern | 80000 stitches |
| Storage of patterns | 999 |
| Storage of templates | 999 |
| Program input | USB |
| File format | DXF, AI, PLT, DST |
| Main motor power | 750W |
| Total power | 2100W |
| Voltage | 220V 50HZ |
| Dimensions - folded | 1587x1158x1250mm (LxWxH) - 2.3 CBM |
| Dimensions - unfolded | 2210x2215x1250mm (LxWxH) |
