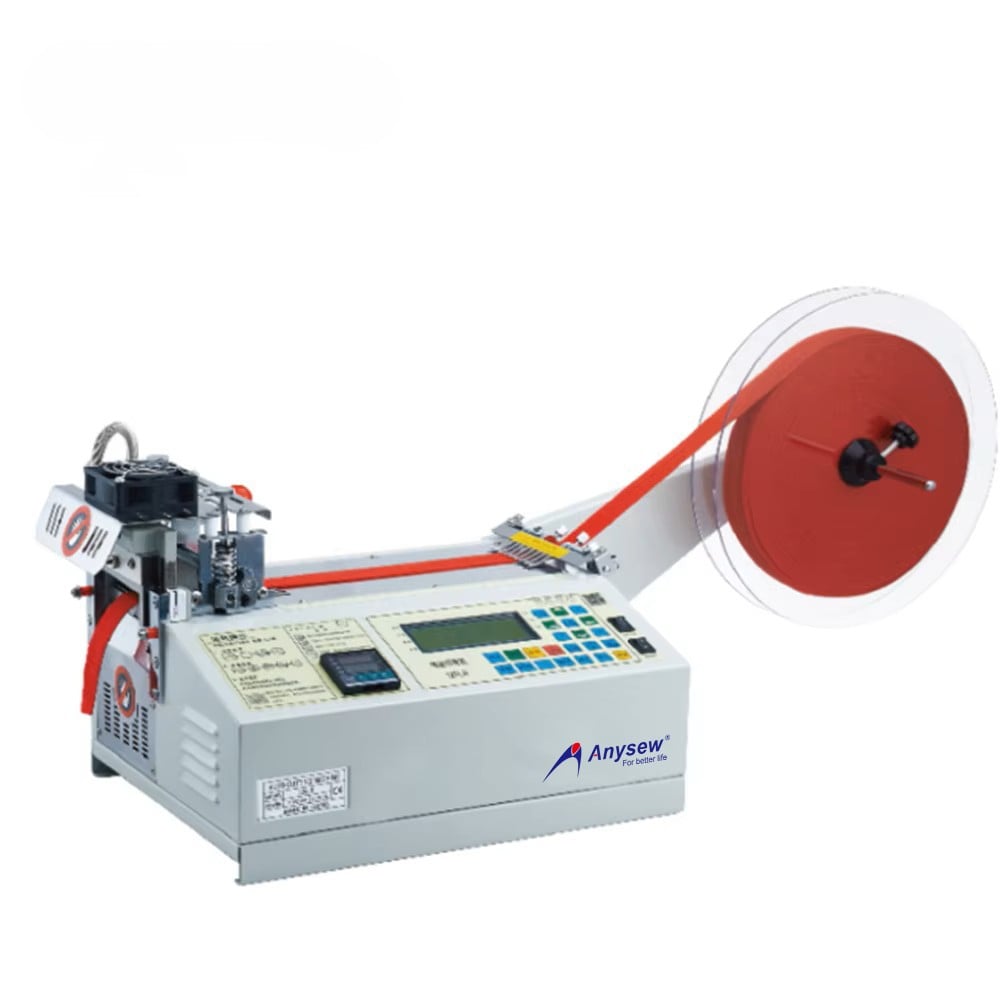

AS-120LR Automatic belt loop cutter cloth tape Cutting Machine(cold&hot)

AS-120LR Automatic Belt Loop Cutter Cloth Tape Cutting Machine(Cold & Hot) This machine is made for cutting cloth tapes accurately and quickly. It is used for both cold and hot cutting, providing flexibility for various material and productionneeds. The automatic operation not only reduces the time but also provides consistent and accurate cuts, making this equipment an outstanding solution for these types of industries that deal with belt loops and cloth tapes.

Overview
Related Products

Specification

High speed: It can cut 95 pcs per minute.(50 mm long) Accuracy: Cut-length is accurate owing to a stepping motor.
Cutting type: Melting & cutting by hot knife tapes are cut neatly without fraying and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting speed length quantity and temperature.It stops automatically if materials run out during operation.
Fault self-check:cutting sensor error no supply the error code will show on the system panel directly if the fault happened.
Memory: Set-length set-quantity set-speed are not erased even if power off & on.
Applications:Belt loop,bag band shrink tube string,elastic band plastic zipper etc.

Model	AS-120LR
Cutting length	20-9999mm
Max.cutting width	95mm
Power	0.66kw
Max blade temp	350℃
Voltage	220/110v
Cutting Speed	90pcx/min
Package size	560420405mm
Weight	29kg
