AS8100-8045 Automatic Oil-Free Process Template Machine Cutting Template Machine

AS8100-8045 Automatic Oil-Free Process Template Machine (Cutting Template Machine) is a highly efficient and sophisticated equipment. It has an Automatic system that increases both work efficiency and accuracy. Being oil-free is another outstanding feature as it makes regular oiling redundant, saves maintenance time, and allows you to keep your working place clean.

Overview
Related Products

Detail Image

Optional accessories

Specifications

.Widening synchronous belt up to 5cm;

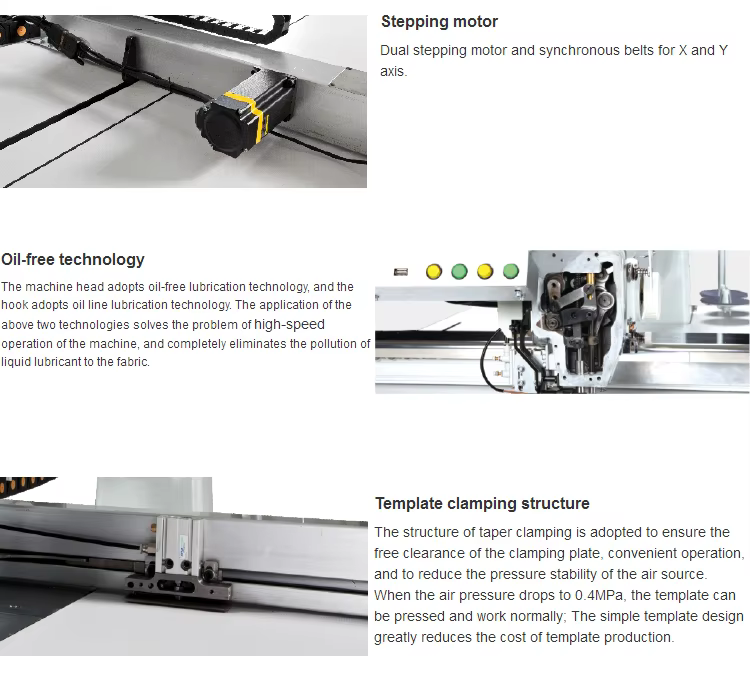

.Stepping motor mechanism;

.Sophisticated shape is suitable for any workshop;

.Oil-free on needle and head components;

.Micro oil on the rotary hook;

.Front mounted thread cutting cam brings a convenient maintenance;

.new template clamping device;

Model	AS8100-8045
Sewing range	X: 80cm Y: 45cm
Stitch type	301 lockstitch form
Max. speed	2800 rpm (when stitch length at 3mm and with regular thread)
Max. stitch length	0.5-12.7 mm
Lift of the pressor foot	By hand: 5.5 mm; by knee: 13 mm
Needle type	DBX1 10#(7#-14#), DPX5 10#(7#~14#), DPX35 19#(18#~23#)
Hook	Double capacity hook
Middle presser foot	Stroke of 4mm as standard
	Lowest position adjustable range: 0.5-8mm
	Minimum distance adjustment range: 20mm
Outside presser foot	Distance to the big needle plate: 20mm
Max. stitches in a pattern	80000 stitches
Storage of patterns	999
Storage of templates	999
Program input	USB
File format	DXF, AI, PLT, DST
Main motor power	550W
Total power	2100W
Voltage	220V 50HZ
Dimensions - unfolded	1325x1158x1250mm (LxWxH)
